S60 SERIES 100W,120W,160W,200W&240W

LED TECHNICAL DATA

Typical Luminous Flux&Efficiency @350mA; 1301m @25°C

Max Junction Temperature:

150°C

Color Temperature:

3500K-6500K

LED life Cycle 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LED light source :

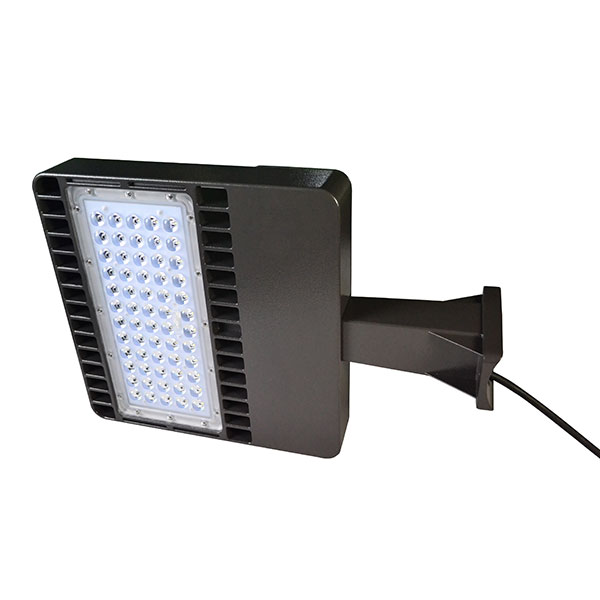

1 LED modules x 60pcs XTE CREE (100W)

1LED modules x 60pcs XTE CREE (120W)

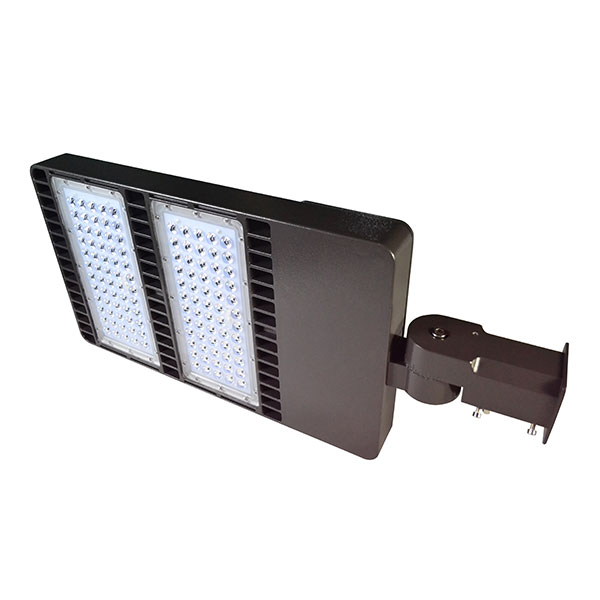

2LED modules x 60pcs XTE CREE (160W)

2 LED modules x 60pcs XTE CREE (200W)

2 LED modules x 60pcs XTE CREE (240W)

Luminous Flux :

100W-9500 lm

120W-11400 lm

160W-15200 lm

200W-19000 lm

240W-22800 lm

Housing Material :

Die Cast Aluminum withdurable polyester powder coating

Operating Temperature :

-30C~+45C

Power Dirver:

AC:100~295Vac 50/60Hz

Classification :

IP66 Class I

Protection:

Built-in external SPD

Mounting Bracket

Type A for pole mounted

Type B for wall mounted

Net Weight:

120W: 6.8KG

240W: 10.9KG

COMPLIANCE STANDARD

Driver:

UL/CUL,CE,EN55015,EN61000,EN61457

Luminaire:

LM79,EN 60598-1,EN60598-2-3 , EN62471,EN62493,EN61000-3,EN61547

APPLICATION

Outdoor Parking Lightings

Street Lightings

Commercial,Residential Lightings

ORDER CODE

TSL-S60-100W

TSL-S60-120W

TSL-S60-160W

TSL-S60-200W

TSL-S60-240W

DIMENSION
