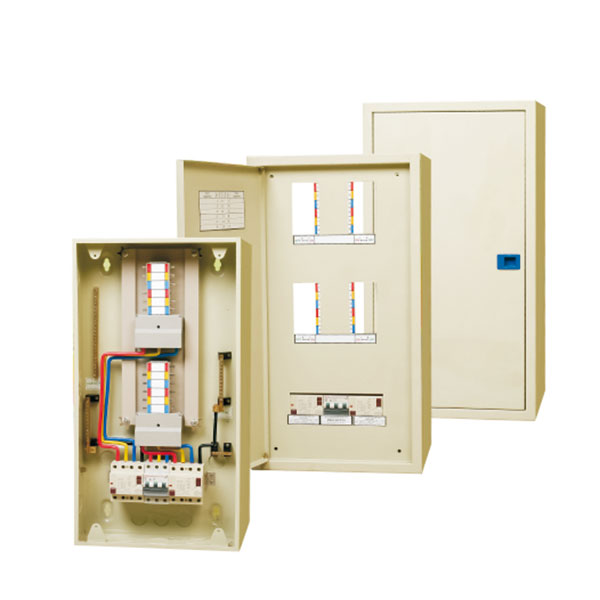

TPN Split Din Rail Distribution Boards

Model: TPN Split Din Rail Distribution Boards

Range: Maxguard

Main Export Markets: America, Europe, Asia, Oceania, Africa

Minimum Order: 2000

Compliance Standard: IEC-60439

Product Features	Specifications	Download	Inquiry

Busbar Rating	NO.Of Ways	Incomer Isolator	Incomer 300mA 30mA		Catalog Number	Dimensions(mm) Width Height Depth mm mm mm
150A	2+2W	100A	63A	63A	HPE4-2+2W	400	540	85
150A	4+2W	100A	63A	63A	HPE4-4+2W	400	610	85
150A	4+4W	100A	63A	63A	HPE4-4+4W	400	700	85
150A	6+2W	100A	63A	63A	HPE4-6+2W	400	700	85
150A	6+4W	100A	63A	63A	HPE4-6+4W	400	460	85
150A	6+6W	100A	63A	63A	HPE4-6+6W	400	850	85
150A	8+2W	100A	63A	63A	HPE4-8+2W	400	760	85
150A	8+4W	100A	63A	63A	HPE4-8+4W	400	850	85
150A	8+6W	100A	63A	63A	HPE4-8+6W	400	930	85
150A	8+8W	100A	63A	63A	HPE4-8+8W	400	1000	85
150A	10+2W	100A	63A	63A	HPE4-10+2W	400	850	85
150A	10+4W	100A	63A	63A	HPE4-10+4W	400	930	85
150A	10+6W	100A	63A	63A	HPE4-10+6W	400	1000	85
150A	12+2W	100A	63A	63A	HPE4-12+2W	400	930	85
150A	12+4W	100A	63A	63A	HPE4-12+4W	400	1000	85
150A	12+6W	100A	63A	63A	HPE4-12+6W	400	1080	85
150A	12+8W	100A	63A	63A	HPE4-12+8W	400	1150	85
