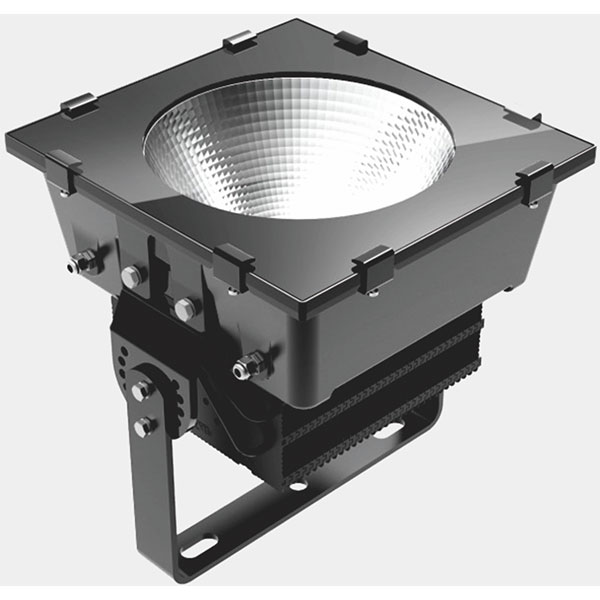

The high intensity LED luminaire delivers incredible efficiency without sacrificing application performance. The H series is an idea replacement for outdated high pressure sodium floodlight with max power up to 2000watt . It will be undisputable saving energy and increased value for clients. Whilst widely applied in construction sites, highway projects, mining and excavation and anywhere a mobile light source with large area coverage capability is requested.
FEATURES
• High intensity LED luminaire output
• Low operating temperature for durable life spans with patented copper heatpipe and fins design.

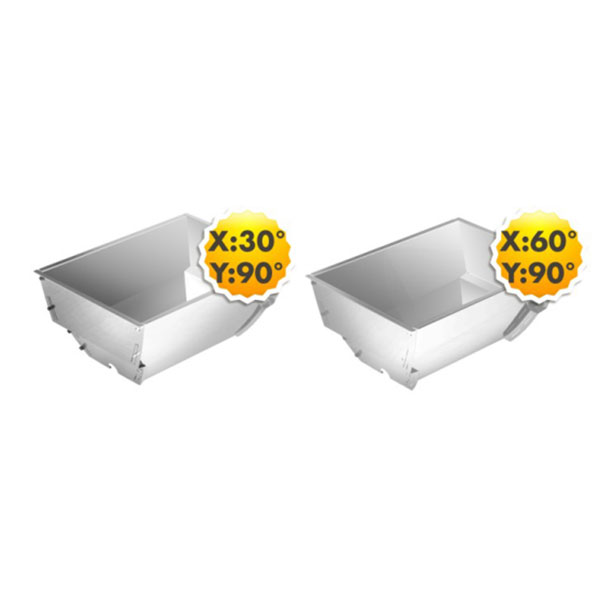

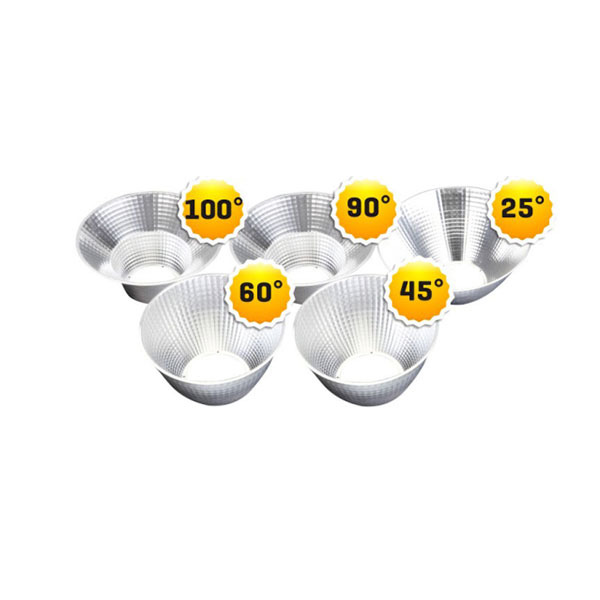

• Optional beam angle for reflector.
• Built-in respirator to clear away mist and avoid dewing
• Passed toughly wind tunnel testing, anti-typhoon up 17 grade •Adjustable mounting bracket angle up to 240 degree
• IP grade reachesIP67

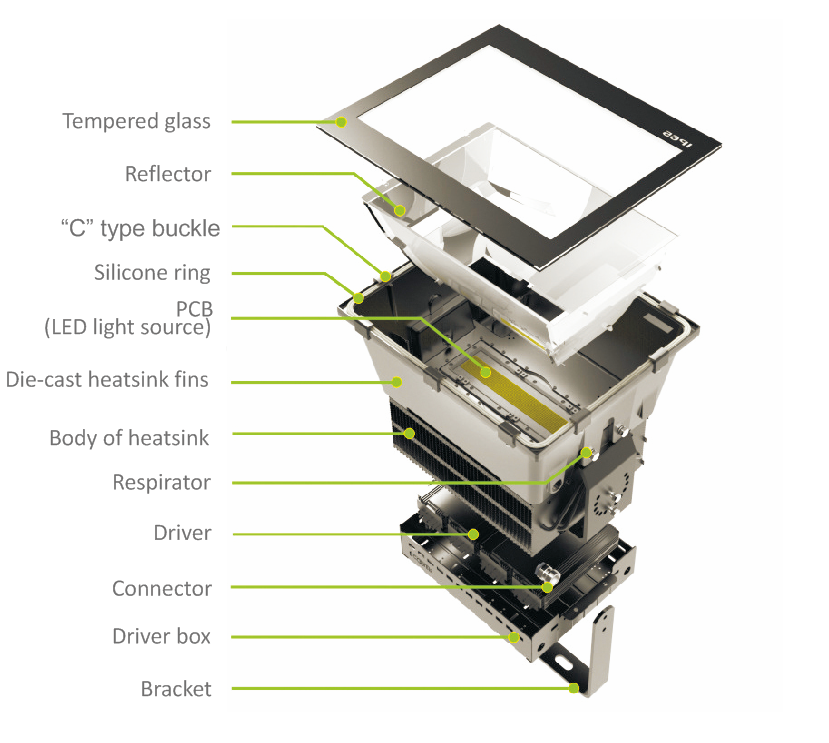

Body of heatsink Respirator Driver Connector Driver box Bracket

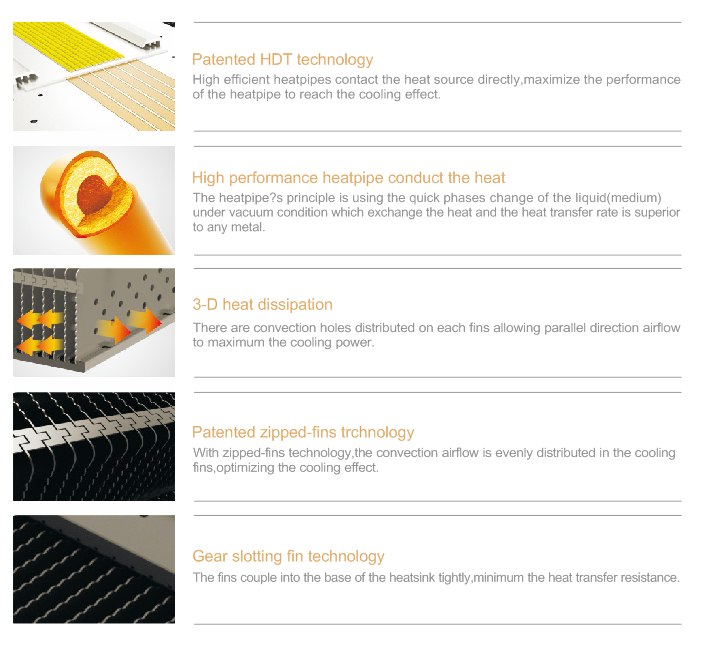

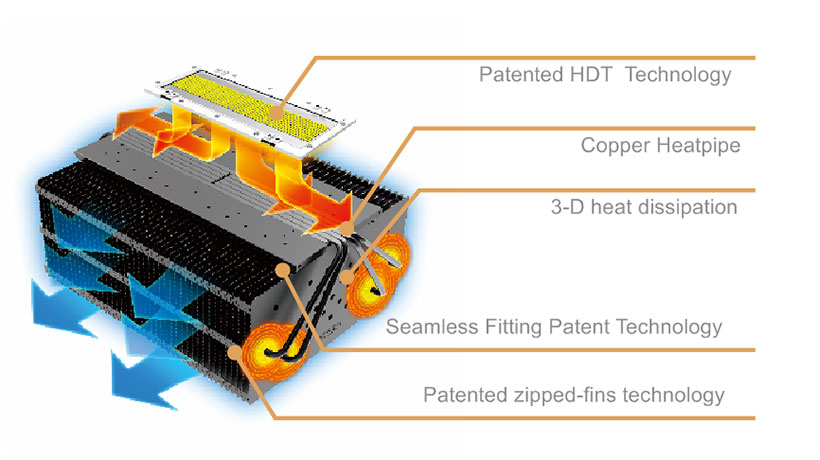

Patented HDT technology
High efficient heatpipes contact the heat source directly,maximize the performance of the heatpipe to reach the cooling effect.
High performance heatpipe conduct the heat
The heatpipe's principle is using the quick phases change of the liquid(medium) under vacuum condition which exchange the heat and the heat transfer rate is superior to any metal.
3-D heat dissipation
There are convection holes distributed on each fins allowing parallel direction airflow to maximum the cooling power.
Patented zipped-fins trchnology
With zipped-fins technology,the convection airflow is evenly distributed in the cooling fins,optimizing the cooling effect.
Gear slotting fin technology
The fins couple into the base of the heatsink tightly,minimum the heat transfer resistance.
