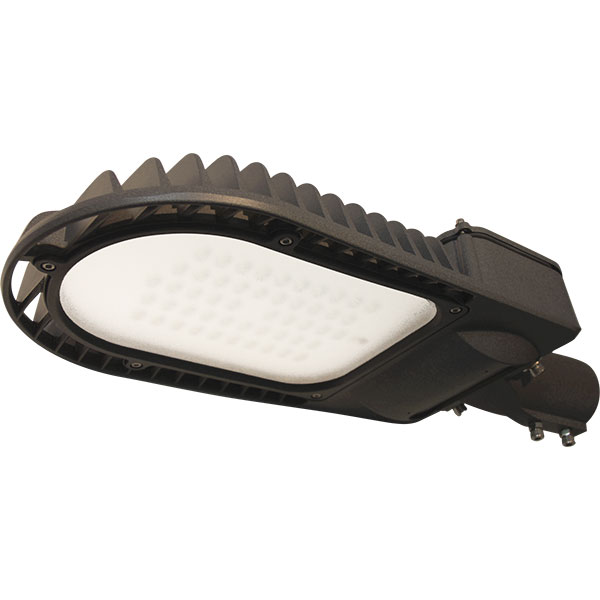

S50 SERIES 50W,60W&75W
LED TECHNICAL DATA
Typical Luminous Flux&Efficiency@350mA;
• 130lm@25°C
Max Junction Temperature:
• 150°C
Color Temperature:
• 3500K-6500K
LED life Cyc
• 50,000 hrs.
LUMINAIRE TECHNICAL DATA
LED Light Source :
LED modules x 27pcs XTE CREE
Luminous Flux :
• 50W-5500 Im
• 60W-6600 Im
• 75W-8200 Im
Housing Material :
Die-cast aluminium finished with durable polyester epoxy powder coating
Operating Temperature :
• -30C~+60C
Power Dirver:
AC:100~295Vac 50/60Hz
Classification :
• IP66 Class I Protection:
Built-in external SPD
Mounting Spigot
φ60mm

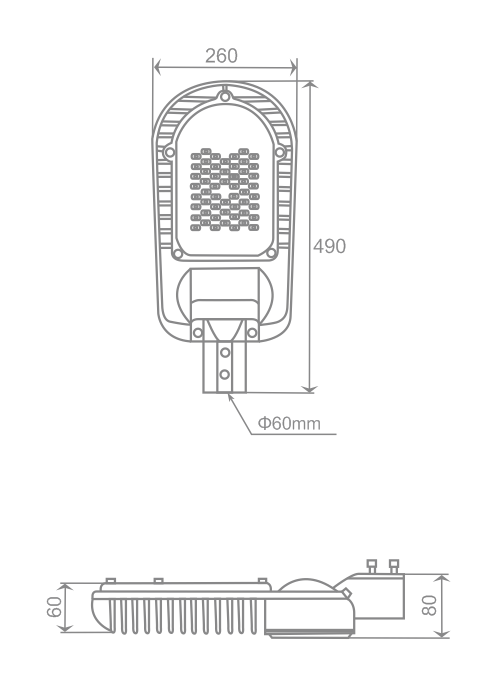

Pole Installation Details (mm)
Pole diameter 055-60mm
Net Weight:
55W: 4.6KG
60W: 4.6KG
75W: 4.6KG
COMPLIANCE STANDARD
LED:
LM80
Driver:
UL/CUL,CE,EN55015,EN61000,EN61457
Luminaire:
LM79,EN 60598-1,EN60598-2-3 ,EN62471, EN62493,EN61000-3,EN61547
APPLICATION
Street/Roadway lighting Parking AREAS Commercial Areas Residential Areas
ORDER CODE
• TSL-S50-50W
• TSL-S50-60W
• TSL-S50-75W
• S90 SERIES 90w，100w&120w
LED TECHNICAL DATA
Typical Luminous Flux&Efficiency @350mA; 130lm@25°C
Max Junction Temperature:
150°C
Color Temperature:
3500K-6500K
LED life Cyc
50,000 hrs.
LUMINAIRE TECHNICAL DATA
LED light source :
LED modules x 50pcs XTE CREE
Luminous Flux :
90W-9900 Im
100W-11000 Im
120W-13200 Im
Housing Material :
Die-cast aluminium finished with durable polyester Epoxy powder coating
Operating Temperature :
-30C-+60C
Power Dirver:
AC:100~295Vac 50/60Hz
Classification :
IP66 Class I
Protection:
Built-in external SPD
Mounting Spigot
φ60mm
Net Weight:
90W: 7KG
100W: 7KG
120W: 7KG
COMPLIANCE STANDARD
LED:
LM80
Driver:
UL/CUL,CE,EN55015,EN61000,EN61457
Luminaire:
LM79,EN 60598-1,EN60598-2-3 ,EN62471, EN62493,EN61000-3,EN61547
APPLICATION
Street/Roadway lighting
Parking AREAS
Commercial Areas
Residential Areas
