• LED : 120-130lm/w Philips Rebel ES . It is one of the best leds from Philips

• Material :powder coated die cast Aluminum

• High light transmittance plastic lens for each leds, lamp luminous flux can reach 90-95lm/w

• Built-in Mean well drivers .make the flood light safer for operation

► Adjustable bracket equipped with three different fastening points,which enable the installation of the fitting in each position needed

^ 12 / 30 / 60 / 60x135 / 85x 135 deg beam angles optional .different applications are fulfilled in one simple design ,

which can direct the light to the exact area needed ,no light pollution .it is especially suitable for stadium and sports field .

• Color of body : silver / grey / black

• IP rating :IP67

Typical Luminous Flux&Efficiency @350mA;

• 130lm@25°C

Max Junction Temperature:

• 150C

Color Temperature:

3500K-6500K

Color Temperature:

LED life Cycle

• 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LED light source :

2LED modules x 36pcs Philips Rebel (140W)

3LED modules x 36pcs Philips Rebel (200W)

4LED modules x 36pcs Philips Rebel (280W)

5LED modules x 36pcs Philips Rebel (360W)

Luminous Flux :

140W-13830 lm

200W-20930 lm

280W-27755 lm

360W-36000 lm

Housing Material :

• Die Cast Aluminum withdurable polyester powder coating

• Operating Temperature :

• -30C~+45C

• Power Dirver:

AC:100~295Vac 50/60Hz

Classification :

• IP67 Class I Protection:

• Built-in external SPD

Net Weight:

• 120W: 6.8KG

• 180W: 9.5KG

• 240W: 13.2KG

• 360W: 16KG

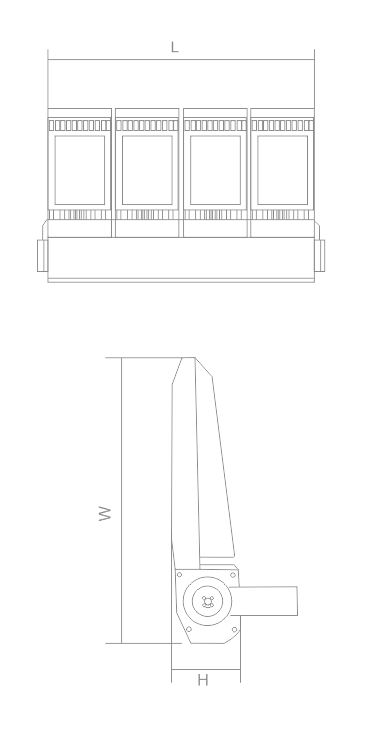

DIMENSIONS
