ADVANTAGES

•50% power usage on each LED module for longer life span. •50% lighter than equivalent power lighting weight •Adjustable arm angle range up to 180°

COST PERFORMANCE

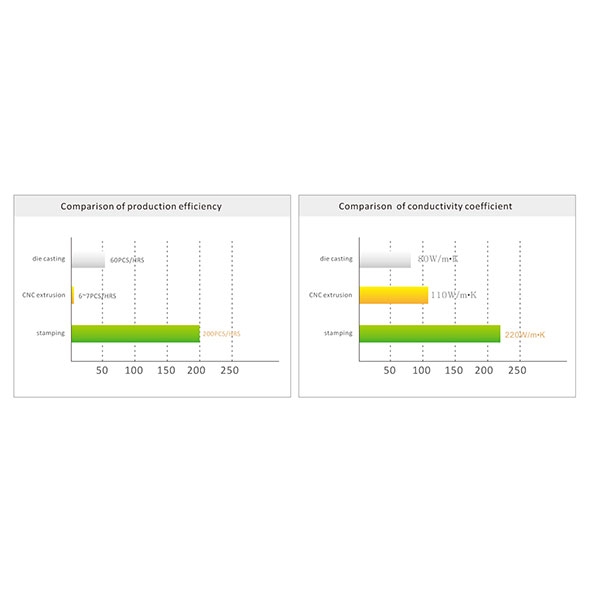

Manufactured with the process will increase the production efficiency,the heat dissipation performance of the materials and the weight is generally 1 time lighter than that of common products.

INNOVATIVE MODULAR DESIGN, HIGH COST PERFORMANCE, INVENTION PATENT PROTECTION

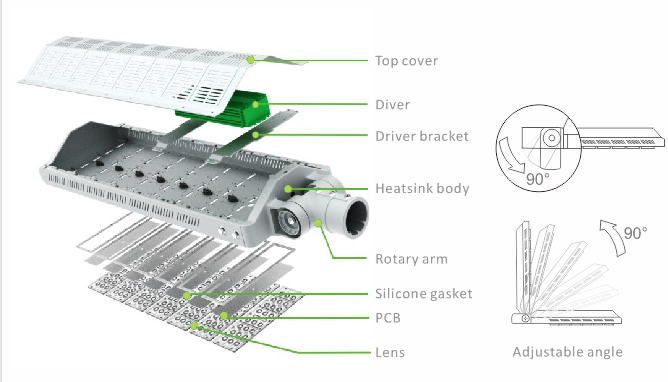

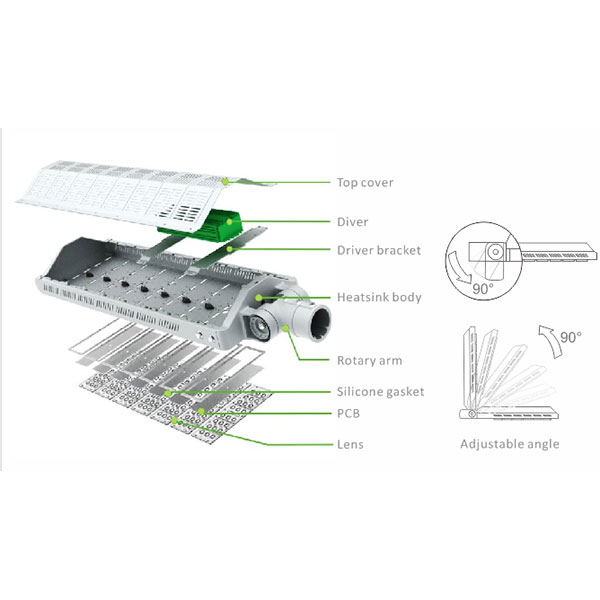

Top cover

Diver

Driver bracket Heatsink body

Silicone gasket PCB

Lens

Rotary arm

Adjustable angle

FEATURES

• Good heat dissipation performance

• Special finishing treatment ensure to undergo 500 hours salt spray test

• Dustless and ponding free, IP Rating can be reaching IP67

• Pass wind tunnel test, anti typhoon up to 17 grade

• Easy installation & replacement savings

• Special finishing treatment to withstand harsh outdoor conditions.

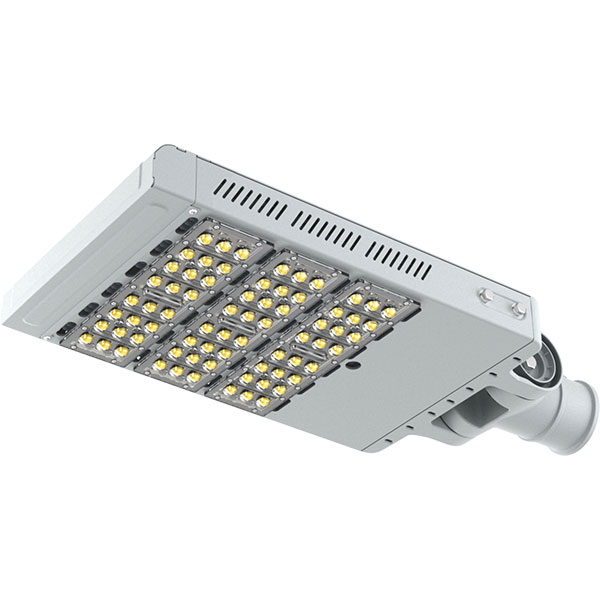

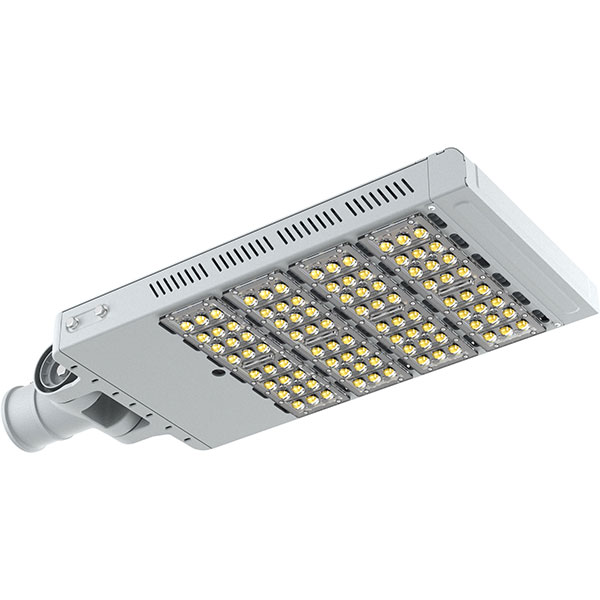

S300B SERIES 150W,200W,250W,300W&350W

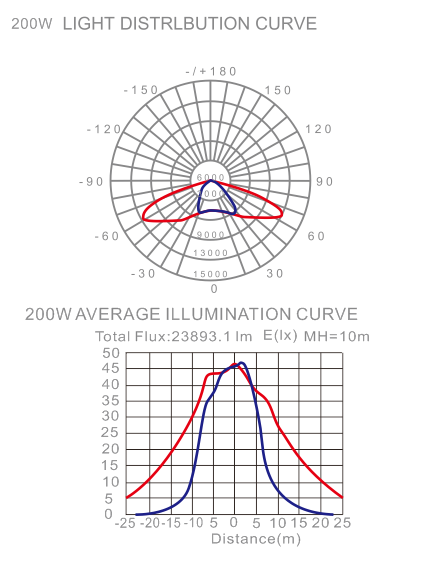

LED TECHNICAL DATA PHOTOMETRIC

Typical Luminous FIux&Efficiency @350mA;

• 130lm@2

Max Junction Temperature:

• 150℃

Color Temperature:

3500K-6500K

LED life Cyc

• 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LED light source

3LED modules x 24pcs XTE CREE(150W)

4LED modules x 24pcs XTE CREE(200W)

5LED modules x 24pcs XTE CREE(250W)

6LED modules x 24pcs XTE CREE(300W)

7LED modules x 24pcs XTE CREE(350W)

Luminous Flux:

150W-16500 lm

200W-22000 lm

250W-26500 lm

300W-33000 lm

350W-38500 lm

Operating Temperature :

• •30oC-+45oC

Power Dirver:

AC:100~295Vac 50/60Hz

Classification :

• 1P67 Class I Protection:

• Built-in external SPD

Mounting Spigot

•φ 61.5mm

Net Weight:

150W:5.9KG

200W：6.3KG

250W：6.7KG

300W：7.3KG

350W：8.0KG

COMPLIANCE STANDARD

Driver:

UL/CUL,CE,EN55015，EN61000，EN61457

Luminaire:

EN62471 ,EN62493,EN61000-3,EN61547

APPLICATION

Street/Roadway lightings

Highway lighings

Industrial lighting

Commercial lighting

ORDER CODE

• TSL-S300B-150W

• TSL-S300B-200W

• TSL-S300B-250W

• TSL-S300B-300W

• TSL-S300B-350W

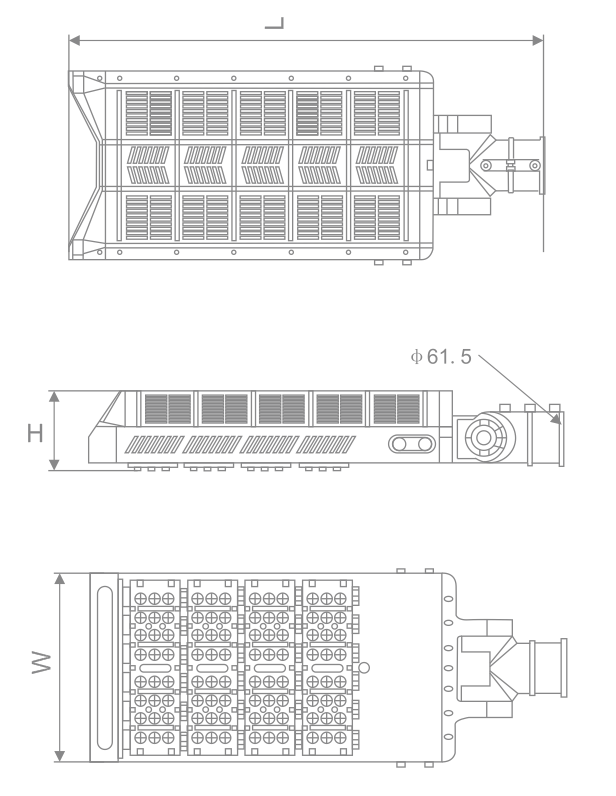

DIMENSION
