1:Unique LED layout, light efficiency 120LM/W

2:Single module rotatable

3:Various replaceable optical lens

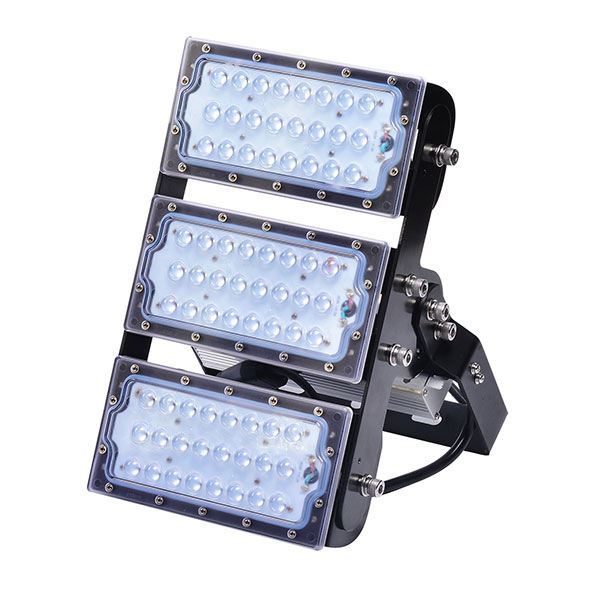

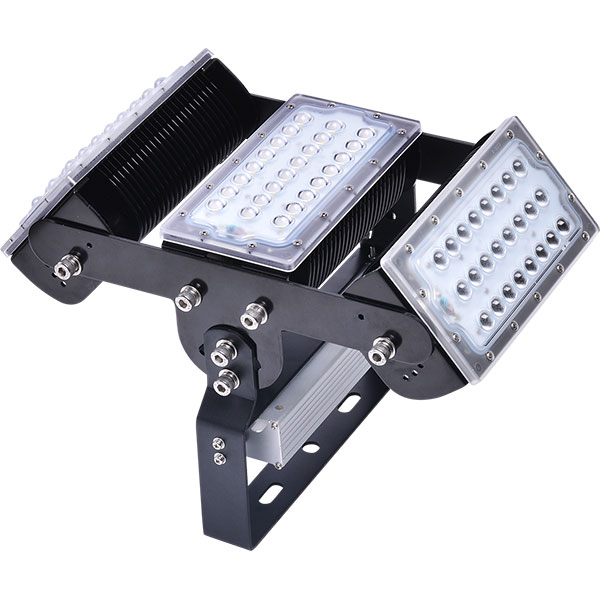

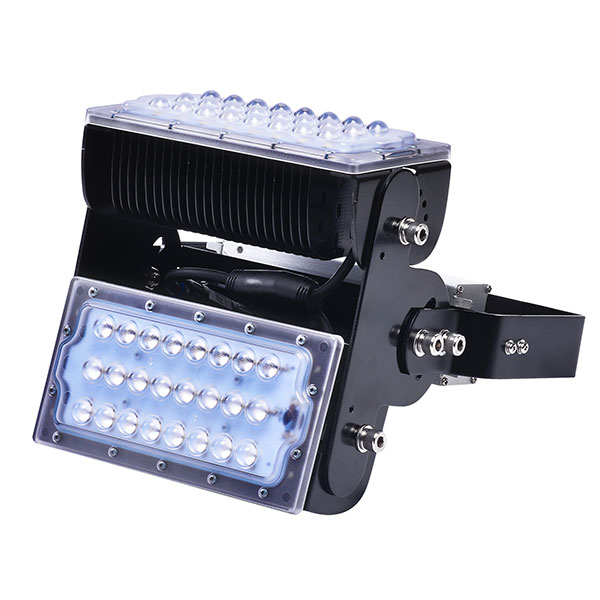

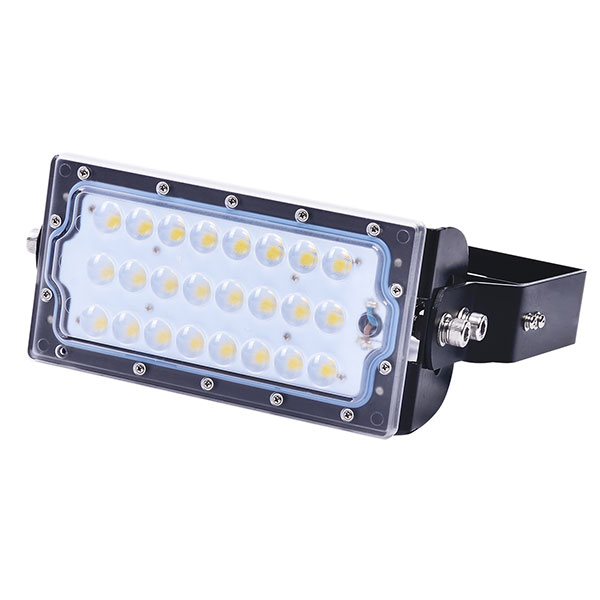

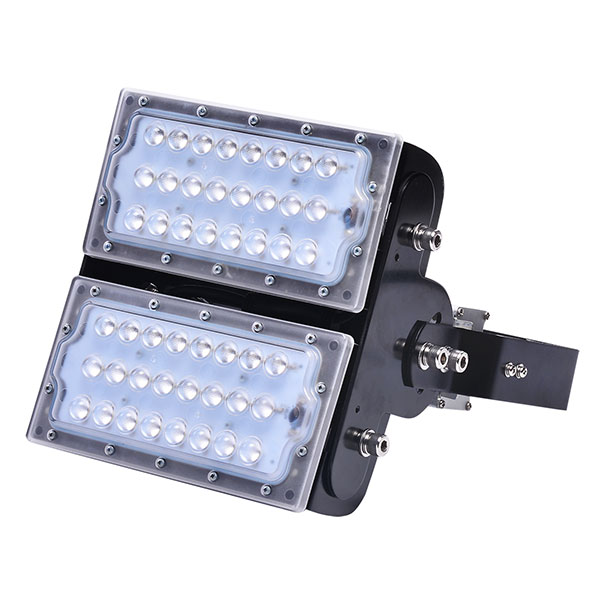

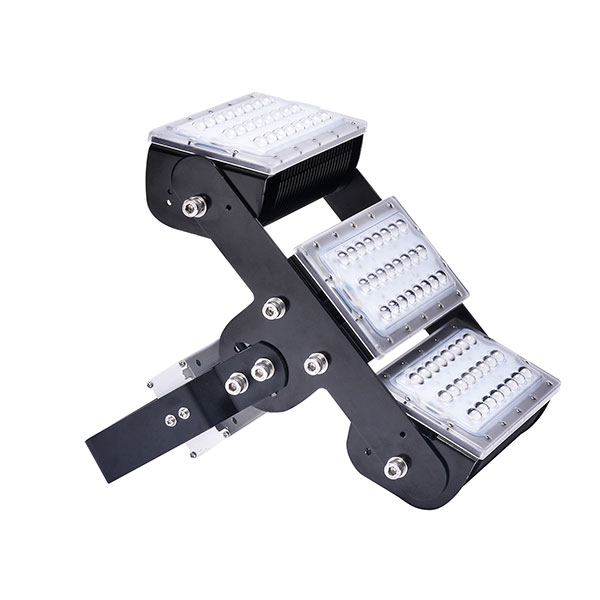

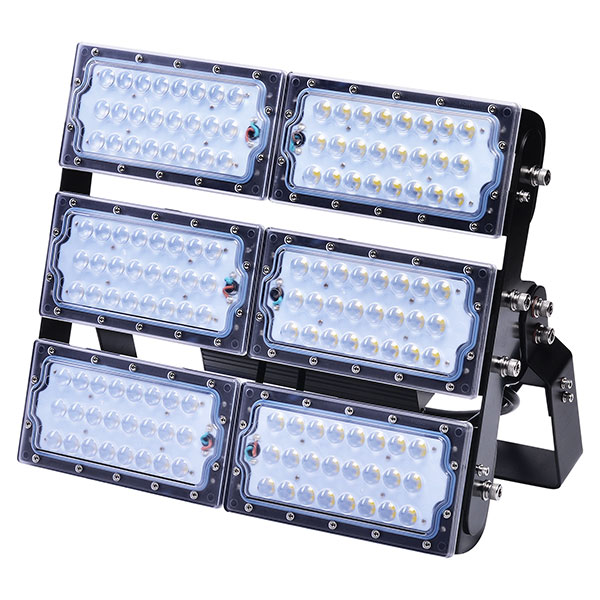

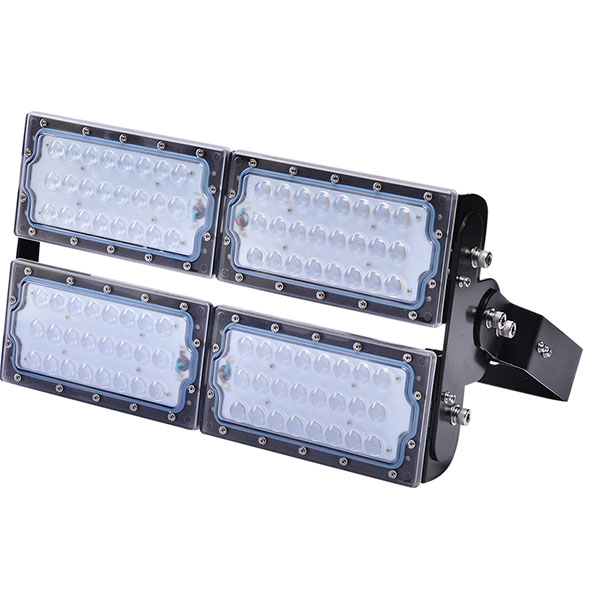

S300F SERIES

50W, 100W, 150W.200W&300W

LED TECHNICAL DATA

Typical Luminous Flux&EfFiciency @350mA;

• 130lm@25°C

Max Junction Temperature:

• 150°C

Color Temperature:

2000K-6500K

LED life Cyc

• 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LED light source

1LED modules x 72pcs PHILIPS LUMILEDS(50W)

2LED modules x72pcs PHILIPS LUMILEDS(IOOW)

3LED modules x72pcs PHILIPS LUMILEDS(150W)

4LED modules x 72pcs PHILIPS LUMILEDS(200W)

6 LED modules x 72pcs PHILIPS LUMILEDS(300W)

Luminous Flux:

50W-6000 Im

100W-12000lm

150W-18000lm

200W-24000 Im

300W-36000 Im

Operating Temperature:

-40°C~60°C

Power Dirver:

AC:85~265Vac50/60Hz

Classification：

IP65 Class I Protection:

Built-in external SPD

Net Weight:

50W：2.1KG

100W：3.2KG

150W：4.1KG

200W：5.5KG

300W：8.4KG

COMPLIANCE STANDARD

Driver:

UL/CUL，CE,EN55015,EN61000，EN61457

Luminaire:

LM80，EN 60598-1,EN60598-2-3 EN62471,EN62493,EN61000-3,EN61547

APPLICATION

Stadium

Golf course

Industrial plant

Factory house

DIMENSION
