•Good heat dissipation performance

•Special finishing treatment ensure to undergo 500 hours salt spray test

•Dustless and ponding free, IP Rating can be reaching IP66

•Pass wind tunnel test, anti typhoon up to 17 grade

•Modular design , up to 5 modular

•Easy installation & replacement savings

•Special finishing treatment to withstand harsh outdoor conditions.

LED TECHNICAL DATA PHOTOMETRIC

Typical Luminous Flux&Efficiency @350mA;

• 130lm@25°C

Max Junction Temperature:

.150℃

Color Temperature:

2000K-6500K

LED life Cyc 50,000 hrs.

LED light source

• 1LED modules x72pcs PHILIPS LUMILEDS(50W)

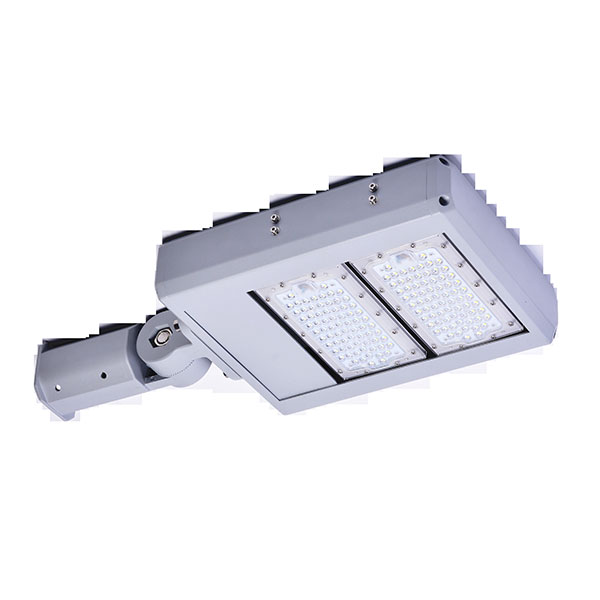

• 2LED modules x72pcs PHILIPS LUMILEDS(100W)

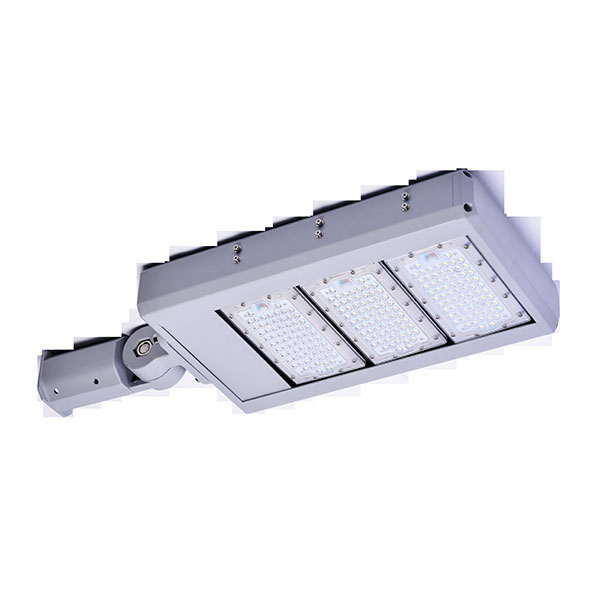

• 3LED modules x 72pcs PHILIPS LUMILEDS(150W)

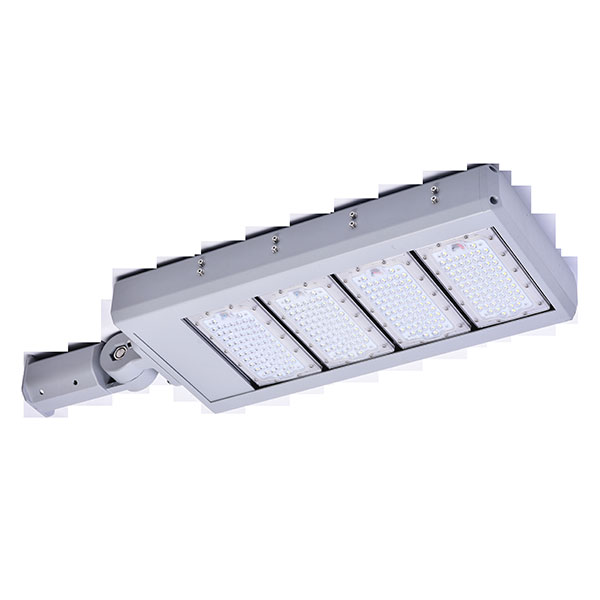

• 4LED modules x 72pcs PHILIPS LUMILEDS(200W)

• 5LED modules x 72pcs PHILIPS LUMILEDS(240W)

Luminous Flux:

50W-6000 Im

100W-12000lm

150W-18000lm

200W-24000 Im

240W-28800 Im

Operating Temperature:

-40°C~60°C

Power Dirver: AC:85~265Vac50/60Hz

Classification :

IP66 Class I Protection:

Built-in external SPD

Mounting Spigot ：φ64.0mm

Net Weight:

50W：3. 7KG

100W：4.9KG

150W：5.8KG

200W：6.8KG

240W：7.8KG

COMPLIANCE STANDARD

Driver:

UL/CUL,CE,EN55015,EN61000，EN61457

Luminaire:

LM79.EN 60598-1 ,EN60598-2-3 , EN62471，EN62493,EN61000-3, EN61547

APPLICATION

Street/Roadway lightings

Highway lighings

Industrial lighting

Commercial lighting

ORDER CODE

TSL-S300A-50W

TSL-S300A-100W

TSL-S300A-150W

TSL-S300A-200W

TSL-S300A-240W

l

DIMENSION
