LED TECHNICAL DATA
Typical Luminous Flu&Efficience @350mA;
• 130lm@25°C
Max Junction Temperature:
• 150℃
Color Temperature:
3500K-6500K
LED life Cycle
• 50,000 hrs.
LUMINAIRE TECHNICAL DATA
LED light source
1xCOB-10C8b Bridgelux(80W)
1xCOB-10C10b Bridgelux(100W)
1xCOB-10C12b Bridgelux(120W)
1xCOB-10C15b Bridgelux(150W)
1xCOB-10C20b Bridgelux(200W)
4xCOB-10C6b Bridgelux(250W)
4xCOB-10C7b Bridgelux(300W)
4xCOB-10C10b Bridgelux(400W)
Housing Material :
• Aluminum profiles withdurable polyester powder coating
Operating Temperature :
• -30C~+45C Luminous Flux :
80W-7400 Im
100W-9800 Im
120W-11000 lm
150W-13600 lm
200W-19600 lm
250W-24550 lm
300W-29500 lm
400W-38700 lm
Power Dirver:
AC:100~295Vac 50/60Hz
Classification :
Protection:
• Built-in external SPD
• Net Weight:
• 80/100W: 4.1kg
• 120/150W: 5.4kg
• 180/200W: 6.0kg
• 250/300W: 11kg
• 300/400W: 15kg
COMPLIANCE STANDARD
Driver:
■UL/CUL,CE,EN55015,EN61000,EN61457
Luminaire:
■LM79,EN 60598-1 ,EN60598-2-3 , EN62471,EN62493,EN61000-3,EN61547
APPLICATION
Manufactueing Facilities
Warehouses
Retail/Big box
Indoor Gymasiums
Athletic Facilities

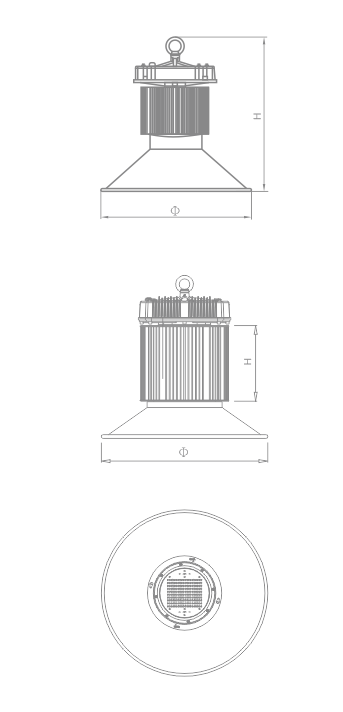

DIMENSIONS
|
Code
|
Power
|
0*H(mm)
|
|
S220HB-80
|
80W
|
500*461
|
|
S220HB-100
|
100W
|
500*461
|
|
S220HB-120
|
120W
|
500*511
|
|
S220HB-150
|
150W
|
500*511
|
|
S220HB-200
|
200W
|
500*561
|
|
S300HB-250
|
250W
|
568*507
|
|
S300HB-300
|
300W
|
568*557
|
|
S300HB-400
|
400W
|
568*607
|
