• Modular design up to 800 watt max

• Incomparable heatsink housing

• Unique fins design for heatsink by riveting

• Swift heat dissipating through copper pipes

• Low LEDs temperature and longer life span

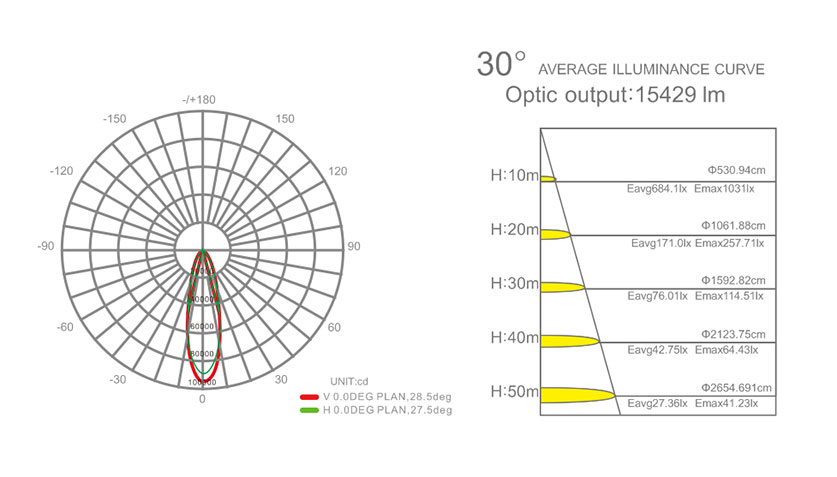

PHOTOMETRIC

LED TECHNICAL DATA

Typical Luminous Flu&Efficience @350mA;

130lm @ 25 °C

Max Junction Temperature:

150℃

Color Temperature:

3500K-6500K

LED life Cycle 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LEDlight source :

1LED modules^ 98pcs Philips Rebel(200W)

2LED modules^ 196pcs Philips Rebel(400W)

3LED modules^ 294pcs Philips Rebe l(600W)

4LED modulesx 392pcs Philips Rebe l(800W)

Luminous Flux :

200W-19360 lm

400W-38720 lm

600W-58960 lm

800W-78320 lm

Operating Temperature :

-30°C~+60°C

Power Dirver:

AC:100~295Vac 50/60Hz

Classification :

• IP67 Class I Protection:

Built-in external SPD

COMPLIANCE STANDARD

LED:

LM80

Driver:

UL7CUL,CE,EN55015,EN61000,EN61457

Luminaire:

LM79,EN 60598-1,EN60598-2-3 ,EN62471, EN62493,EN61000-3,EN61547

APPLICATION

Stadium

Airport hardstand Container Terminal Golf Course Commercial Areas

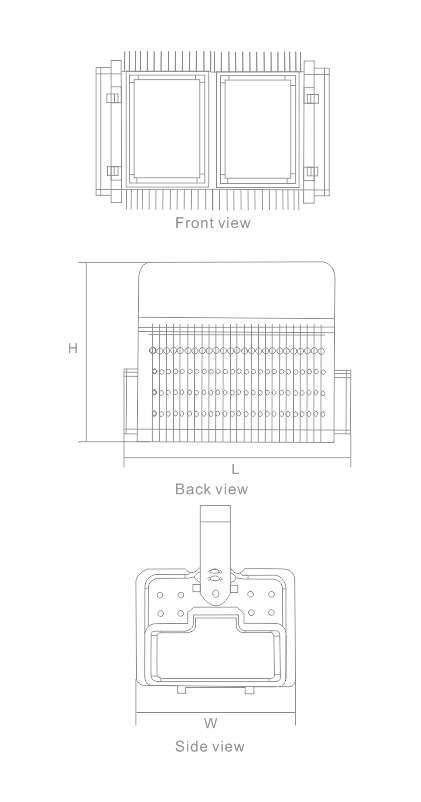

Dimension
