LED : 120-130lm/w Philips Rebel ES . It is one of the best leds from Philips

Material :powder coated die cast Aluminum

• High light transmittance plastic lens for each leds, lamp luminous flux can reach 90-95lm/w

• Built-in Mean well drivers .make the flood light safer for operation

• Adjustable bracket equipped with three different fastening points .which enable the installation of the fitting in each position needed

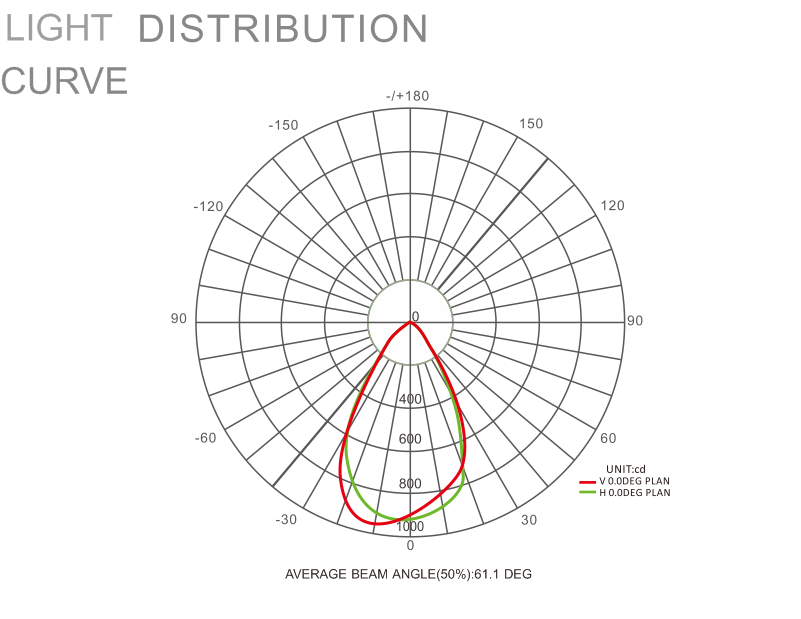

• 12 / 30 / 60 / 60x135 / 85x 135 deg beam angles optional .different applications are fulfilled in one simple design, which can direct the light to the exact area needed, no light pollution .it is especially suitable for stadium and sports field .

• Color of body : silver / grey / black

• IP rating IP67

Typical Luminous Flu&Efficience@700mA;

• 130lm@25°C

Max Junction Temperature:

• 150C

Color Temperature:

3500K-6500K

LED life Cycle

• 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LED light source :

5pcs Philips Rebel(10W)

10pcs Philips Rebel (20W)

15pcs Philips Rebel (30W)

24pcs Philips Rebel (50W)

40pcs Philips Rebel (80-100W)

Housing Material :

• Die Cast Aluminum withdurable polyester powder coating

• Operating Temperature :

• -30C~+45C

• Power Dirver:

AC:100~295Vac 50/60Hz

Classification :

• IP66 Class I Protection:

• Built-in external SPD

• Ground mounting uplighting

COMPLIANCE STANDARD

Driver:

• UL/CUL,CE,EN55015,EN61000,EN61457

• Luminaire:

• LM79,EN 60598-1 ,EN60598-2-3, EN62471,EN62493,EN61000-3,EN61547

APPLICATION

Build Facades

Landscape

Commercial Areas

Residential Areas
