• Beam angle : 120 deg ^ wattage: 10W to 50W

-wattage: 80W to 150W

• Waterproof: IP65 can be used in outdoor

-Chip Brand : Epister Bridgelux c Driver Brand : Meanwell

Senor flood light: sensing 4-8 meters sensing 180deg -Under light source portion embedded copper, better heat sink

Body material: Aluminum appearance by electrostatic spray high transmittance tempered glass

LED TECHNICAL DATA

Typical Luminous Flux&Efficience @300mA;

• 130lm@25°C

Max Junction Temperature:

• 150℃

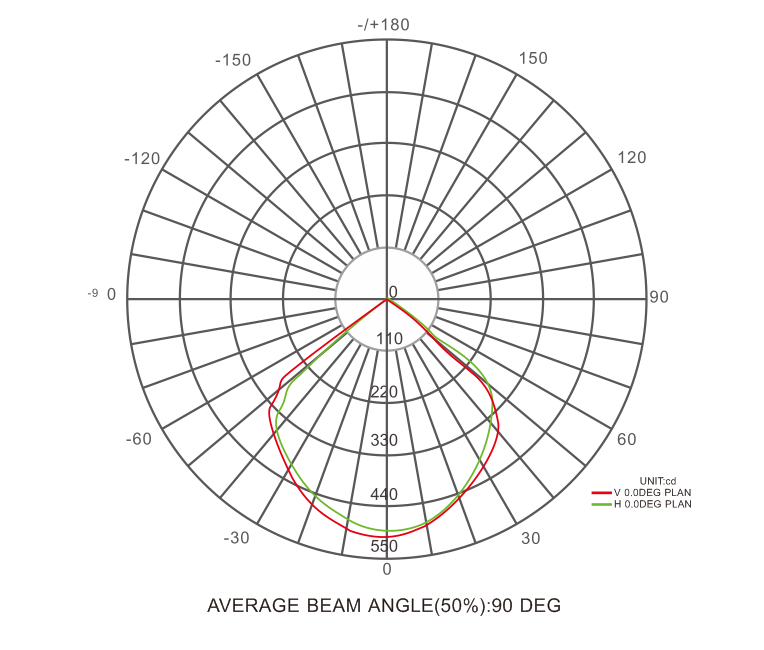

Bean angle: 90

Color Temperature:

3500K-6500K

LED life Cycle

• 50,000 hrs.

LUMINAIRE TECHNICAL DATA

LED light source COB 10W(Epistar)

COB 20W(Epistar)

COB 30W(Epistar)

COB 50W(Epistar)

COB 70W(Epistar)

COB 100W(Epistar)

Luminous flux

10W-800 lm

20W-1600 lm

30W-2500 lm

50W-3800 lm

Housing Material :

• Die Cast Aluminum with durable polyester powder coating

Operating Temperature :

• -30C~+45C

Power Dirver:

AC:100~295Vac 50/60Hz

Classification-

• IP66 Class I Protection:

• Built-in external SPD

Net Weight:

10W: 0.65kg

20W: 1.32kg

30W: 2.4kg

50W: 3.6kg

70W: 4.1kg

100W: 8.5kg

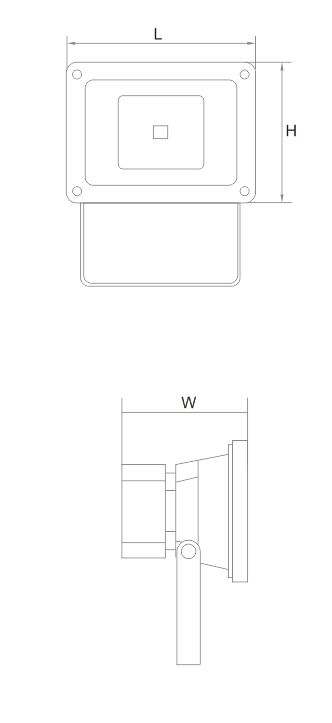

DIMENSIONS
