Circuit protection - Residual Current Circuit Breaker with Over-current Protection (RCBO) - RMCBO240M

You are here: Home > Product Center > Residual Current Circuit Breaker with Over-current Protection (RCBO)

Product Center

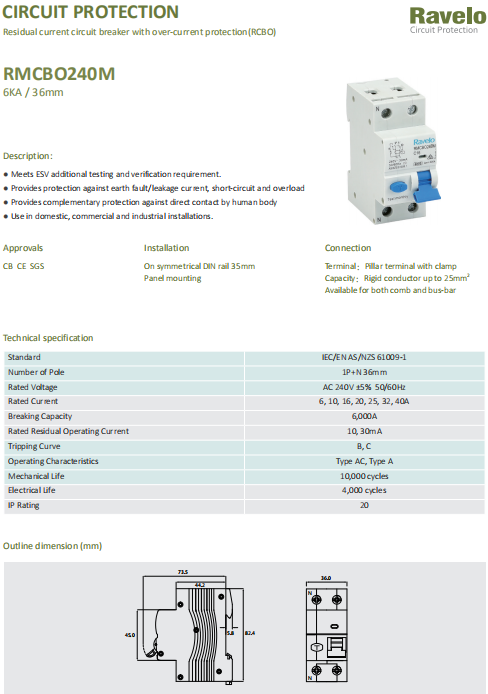

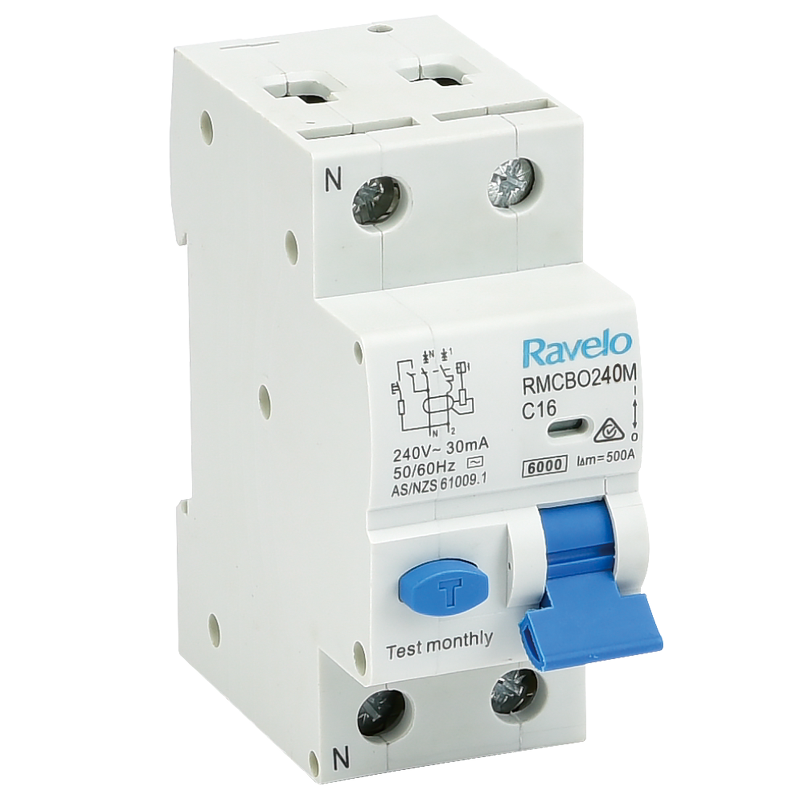

RMCBO240M

n Standard: IEC/EN AS/NZS 61009-1

n Number of pole: 1P+N 36mm

n Rated voltage: 240V a.c. 50/60Hz

n Rated current: 6, 10, 16, 20, 25, 32, 40A

n Breaking capacity: 6,000A

n Tripping curve: B, C

n Operating Characteristics: Type AC and A

Product Features	Specifications	Download	Inquiry
