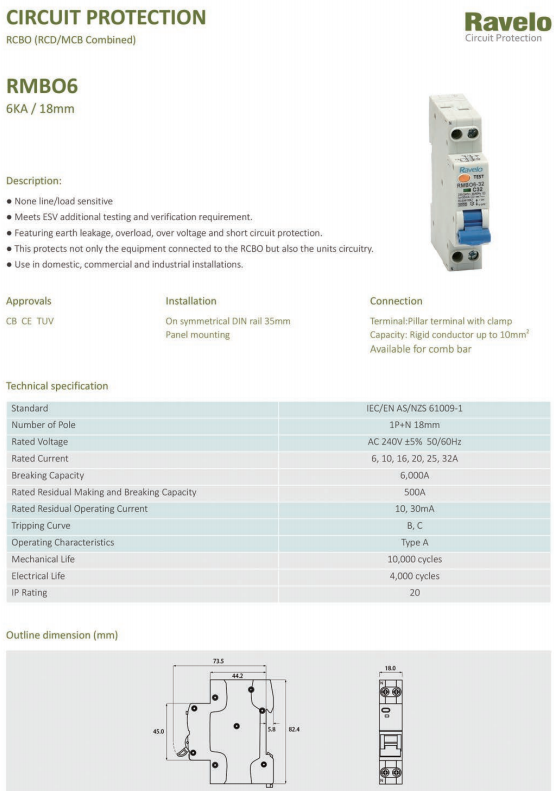

n Standard: IEC/EN AS/NZS 61009-1
n Number of pole: 1P+N 18mm
n Rated voltage: 240V a.c. 50/60Hz
n Rated current: 6, 10, 16, 20, 25, 32A
n Breaking capacity: 6,000A
n Tripping curve: B, C
n Operating Characteristics: Type A
| Product Features | Specifications | Download | Inquiry |
|---|
l 6kA
l 1P+N 18mm-width
l Approvals:CB CE TUV
l None line/load sensitive
l Meets ESV additional testing and verification requirement
l Featuring earth leakage, over voltage and short circuit protection
l It protects not only the equipment connected to the RCBO but also the units circuitry
l Use in domestic, commercial and industrial installations
