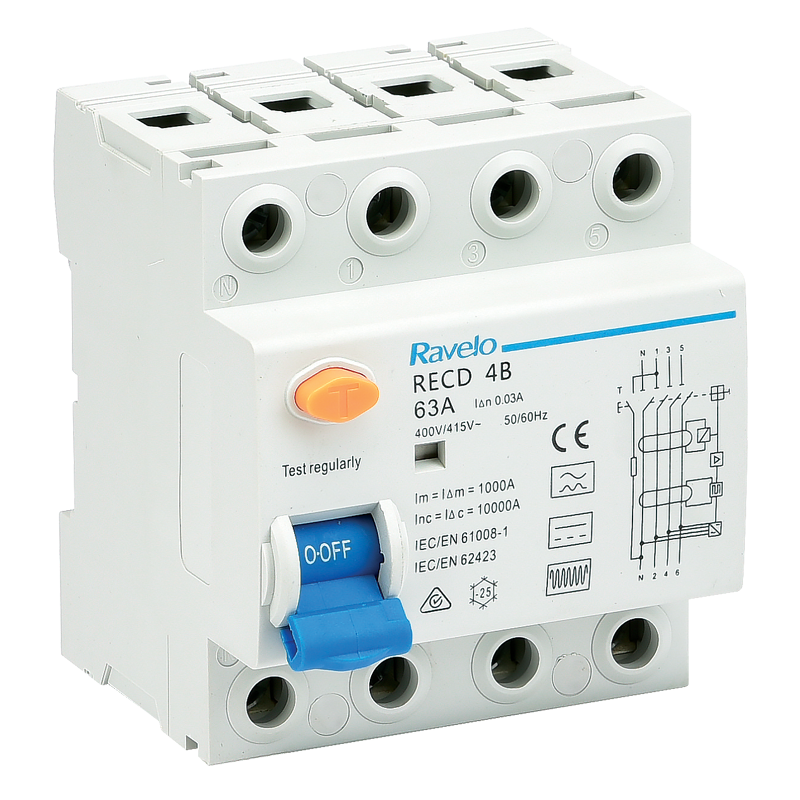

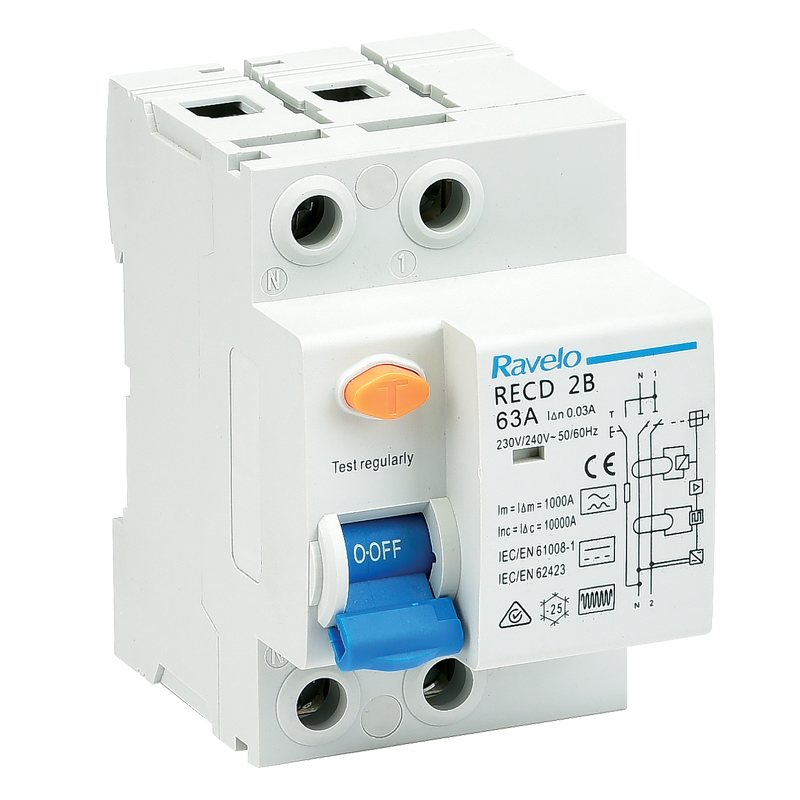

l 1P+N, 3P+N
l Approvals:CB CE TUV

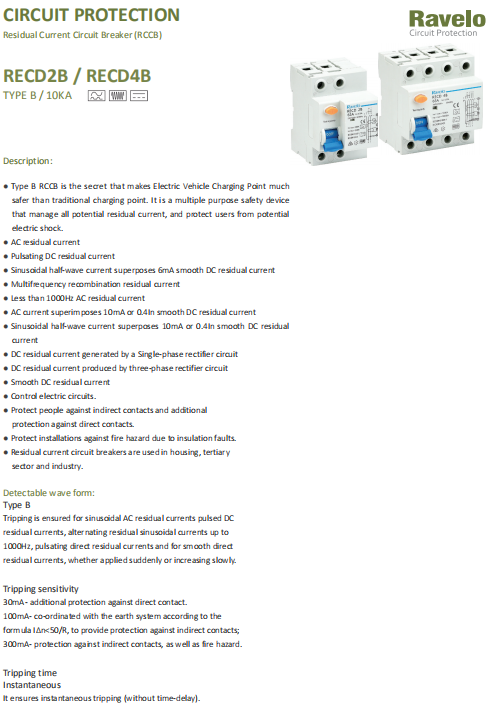

l Type B RCCB is the secret that makes Electric Vehicle Charging Point much safer than traditional charging point. It is a multiple purpose safety device that manage all potential residual current, and protect users from potential electric shock
l AC residual current
l Pulsating DC residual current
l Sinusoidal half-wave current superposes 6mA smooth DC residual current
l Multifrequency recombination residual current
l Less than 1000Hz AC residual current
l AC current superimposes 10mA or 0.4ln smooth DC residual current
l Sinusoidal half-wave current superposes 10mA or 0.4ln smooth DC residual current
l DC residual current generated by a Single-phase rectifier circuit
l DC residual current produced by Three-phase rectifier circuit
l Smooth DC residual current
l Control electric circuits
l Protect people against indirect contacts and additional protection against direct contacts
l Protect installations against fire hazard due to insulation faults
l Residual current circuit breakers are used in housing, tertiary sector and industry
