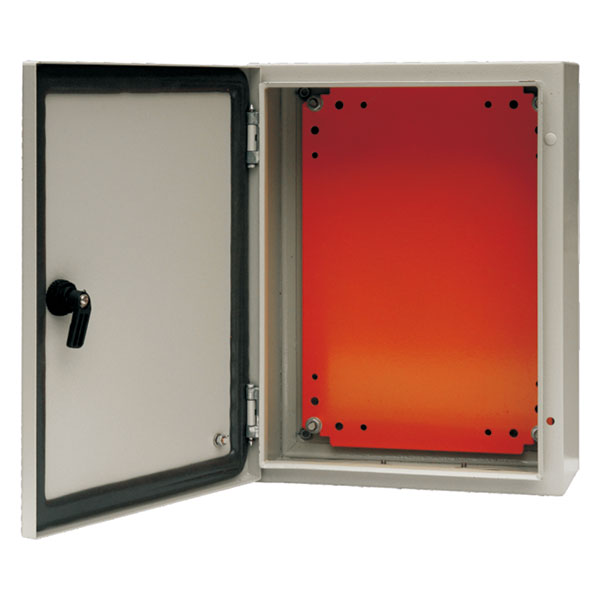

Metal Enclosure specification

Model: Metal Enclosure specification

Range: Maxguard

Main Export Markets: America, Europe, Asia, Oceania, Africa

Minimum Order: 2000

Compliance Standard: IEC-60439

Enquiry Skype Online

Product Features	Specifications	Download	Inquiry

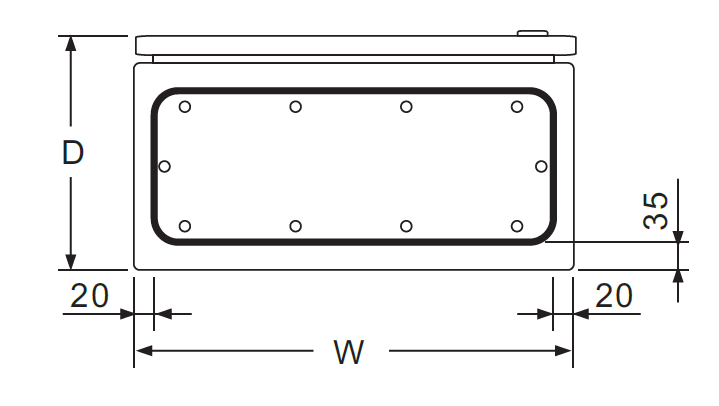

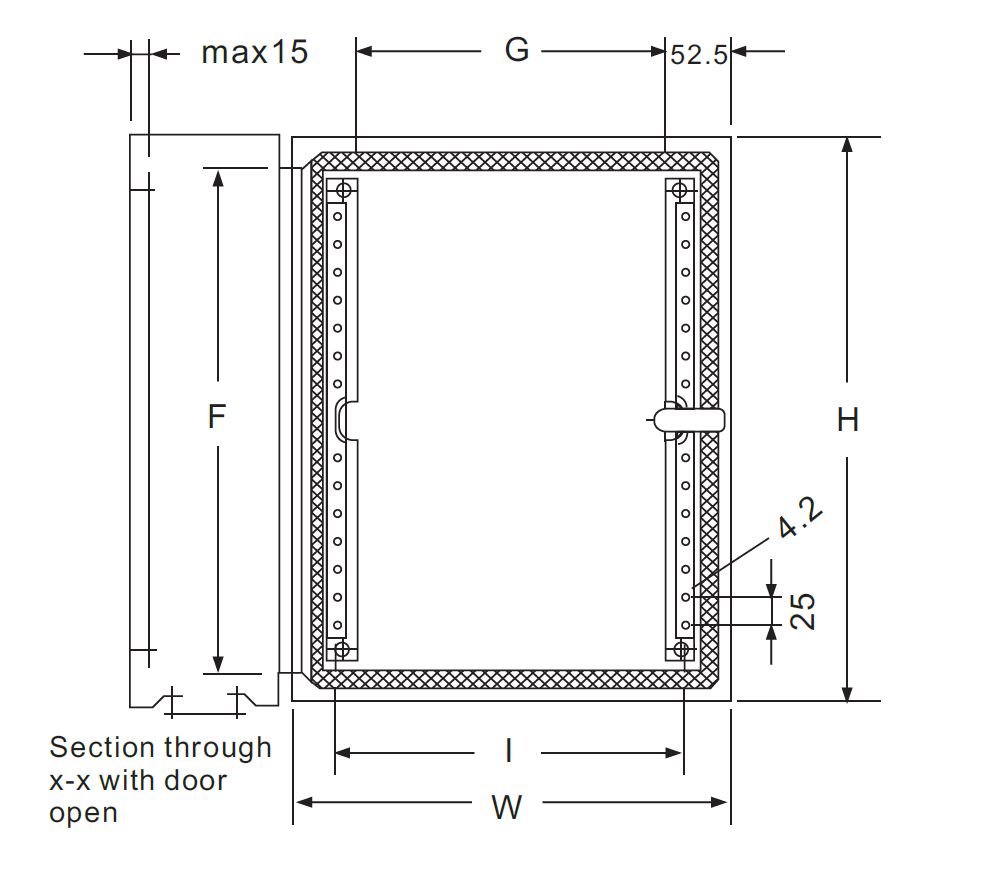

	H	W	D	DOOR	BODY			H	W	D	DOOR	BODY
HP2-215	200	200	150	1.2	1	.2	HP4-730	700	400	300	1.5	1	.2
HP2-250	250	200	150	1.2	1	.2	HP5-715	700	500	150	1.5	1	.2
HP2-315	300	200	150	1.2	1	.2	HP5-720	700	500	200	1.5	1	.2
HP2-320	300	200	200	1.2	1	.2	HP5-725	700	500	250	1.5	1	.2
HP25-315	300	250	150	1.2	1	.2	HP5-730	700	500	300	1.5	1	.2
HP25-320	300	250	200	1.2	1	.2	HP6-720	700	600	200	1.5	1	.2
HP25-325	300	250	250	1.2	1	.2	HP6-725	700	600	250	1.5	1	.2
HP3-315	300	300	150	1.2	1	.2	HP6-730	700	600	300	1.5	1	.2
HP3-320	300	300	200	1.2	1	.2	HP6-820	800	600	200	1.5	1	.5
HP3-325	300	300	250	1.2	1	.2	HP6-825	800	600	250	1.5	1	.5
HP3-415	400	300	150	1.2	1	.2	HP6-830	800	600	300	1.5	1	.5
HP3-420	400	300	200	1.2	1	.2	HP8-820	800	800	200	1.5	1	.5
HP3-425	400	300	250	1.2	1	.2	HP8-825	800	800	250	1.5	1	.5
HP3-430	400	300	300	1.2	1	.2	HP8-830	800	800	300	1.5	1	.5
HP4-415	400	400	150	1.2	1	.2	HP6-1020	1000	600	200	2.0	1	.5
HP4-420	400	400	200	1.2	1	.2	HP6-1025	1000	600	250	2.0	1	.5
HP4-425	400	400	250	1.2	1	.2	HP6-1030	1000	600	300	2.0	1	.5
HP4-430	400	400	300	1.2	1	.2	HP7-1020	1000	700	200	2.0	1	.5
HP3-515	500	300	150	1.2	1	.2	HP8-1020	1000	800	200	2.0	1	.5
HP3-520	500	300	200	1.2	1	.2	HP8-1025	1000	800	250	2.0	1	.5
HP3-525	500	300	250	1.2	1	.2	HP8-1030	1000	800	300	2.0	1	.5
HP3-530	500	300	300	1.2	1	.2	HP10-1025	1000	1000	250	2.0	1	.5
HP4-515	500	400	150	1.2	1	.2	HP10-1030	1000	1000	300	2.0	1	.5
HP4-520	500	400	200	1.2	1	.2	HP6-1220	1200	600	200	2.0	1	.5
HP4-525	500	400	250	1.2	1	.2	HP6-1225	1200	600	250	2.0	1	.5
HP4-530	500	400	300	1.2	1	.2	HP6-1230	1200	600	300	2.0	1	.5
HP5-515	500	500	150	1.2	1	.2	HP8-1220	1200	800	200	2.0	1	.5
HP5-520	500	500	200	1.2	1	.2	HP8-1225	1200	800	250	2.0	1	.5
HP5-525	500	500	250	1.2	1	.2	HP8-1230	1200	800	300	2.0	1	.5
HP5-530	500	500	300	1.2	1	.2	HP10-1225	1200	1000	250	2.0	1	.5
HP4-615	600	400	150	1.2	1	.2	HP10-1230	1200	1000	300	2.0	1	.5
HP4-620	600	400	200	1.2	1	.2	HP12-1225	1200	1200	250	2.0	1	.5
HP4-625	600	400	250	1.2	1	.2	HP12-1230	1200	1200	300	2.0	1	.5
HP4-630	600	400	300	1.2	1	.2	HP6-1430	1400	600	300	2.0	1	.5
HP5-615	600	500	150	1.5	1	.2	HP8-1430	1400	800	300	2.0	1	.5
HP5-620	600	500	200	1.5	1	.2	HP10-1430	1400	1000	300	2.0	1	.5
HP5-625	600	500	250	1.5	1	.2	HP12-1430	1400	1200	300	2.0	1	.5
HP5-630	600	500	300	1.5	1	.2	HP8-1630	1600	800	300	2.0	1	.5
HP6-615	600	600	150	1.5	1	.2	HP10-1630	1600	1000	300	2.0	1	.5
HP6-620	600	600	200	1.5	1	.2	HP8-1830	1800	800	300	2.0	1	.5
HP6-625	600	600	250	1.5	1	.2	HP10-1830	1800	1000	300	2.0	1	.5
HP6-630	600	600	300	1.5	1	.2	HP12-1840	1800	1200	400	2.0	1	.5
HP4-720	700	400	200	1.5	1	.2
