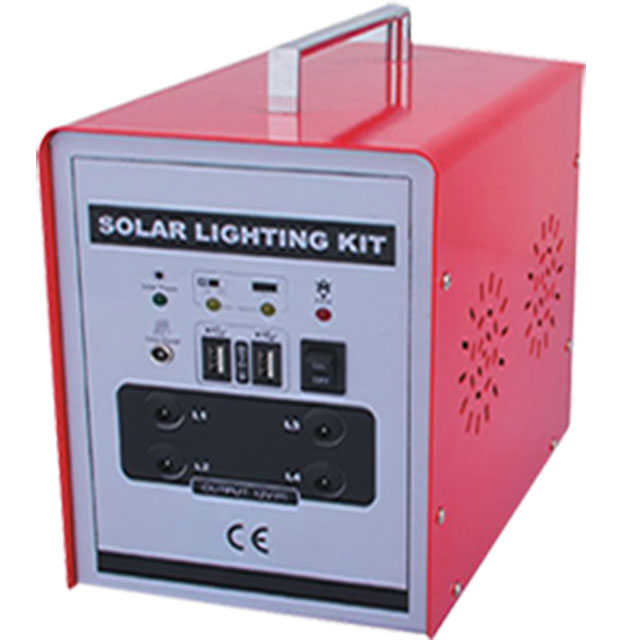

30W Solar Lighting System

Model:SL3020
Range:Clean Energy
Main Export Markets: America, Europe, Asia, Oceania, Africa
Compliance Standard:

Product Features	Specifications	Download	Inquiry

Model		SL3020
System voltage		12V
Solar light kit	Max. solar charge controller	5A
	Rated discharge current	5A
	Open circuit loss	＜5mA
	Over voltage protection	17V
	Lift charge voltage	14.6V
	Lower voltage protection	11.8V
	Over discharge voltage	11V
	Double USB port	5V2.1A
	LED indicators	Fault, battery capacity, solar power
	Solar /AC input port
	Temperature compensation	-4.0mv/0℃/2V
	DC12V output plug	2pcs or 4pcs
	Charge control mode	PWM control
	Protection circuit	Over charge, over discharge, overload, short circuit, solar panel and battery reverse polarity
Solar panel	18V with 6m cable	30W
Storage battery	12V lead acid battery	20Ah
AC charging adaptor	Input 100-240V, 14.5V2A	Optional
USB charger adaptor	10 different connectors	Optional
Lighting source	LED 3W	4pcs or 6pcs
Lighting cable	5M	4pcs or 6pcs
Operating temperature	-35~65℃
Unit size	220134.2197mm
